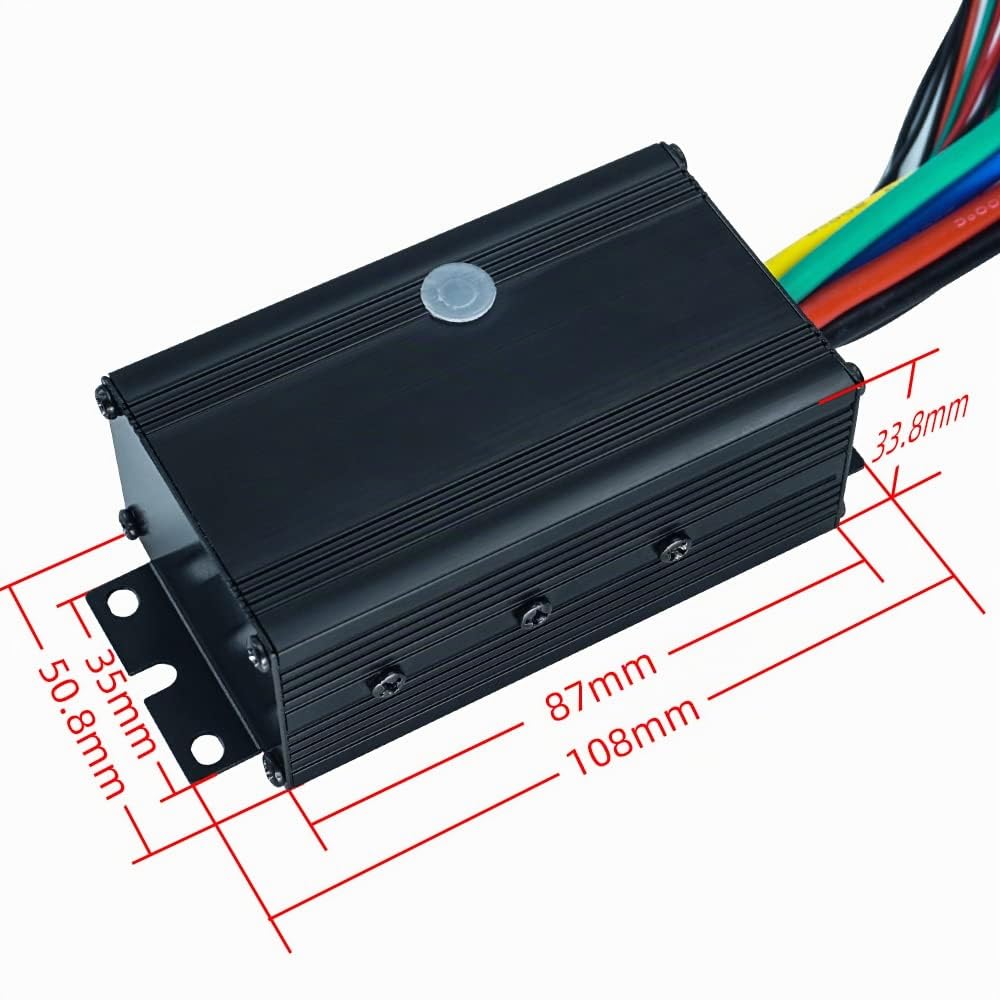

Flipsky 75100 FOC 75 V 100 A Single ESC Mit Aluminium-Leiterplatte Basierend Auf VESC Für Elektro-Skateboard/roller/e-Bike-Geschwindigkeitsregler
Product Overview
- Warm tips: It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC. Remark:Please be careful to limit the Absolute Maximum Current below 200A. If you need other versions, please go to the VESC tool software (Firmware) and select the corresponding version. The version cannot be used incorrectly. Different firmwares may cause differences in parameters; otherwise, it may easily cause damage to the ESC parameters.
- Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
- PLS note:Except for Apple computers, other computer firmware can be downloaded from our official website. Apple computers can only be purchased on Apple.Please strictly refer to the instructions and wiring diagram to ensure the safe use of the product.
- Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01).Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
- Voltage range: 14-84V (safe within 4-20S). Do not exceed the voltage range, which may cause the ESC to burn out.
- Continuous current: 100A; Max Current:120A.Programmable: Yes；Regenerative Capacity: Yes
- Please connect according to the wiring diagram, and pay special attention to 3.3V and 5V. Do not short-circuit. Note: When using any throttle handle, under ADC control, make sure that the positive pole of the power supply is connected to 3.3V, not 5V.
- FS75100*1pcs;USB cable*1pcs;Hall sensor adapter (6pins)*1pcs;Manual*1pcs.
- You can refer to the video. If you still don’t understand, you can contact us to send relevant videos.
- Warm reminder: The ESC seat is easy to fall off, please do not be too violent when using it.The battery and motor ports must be welded firmly
